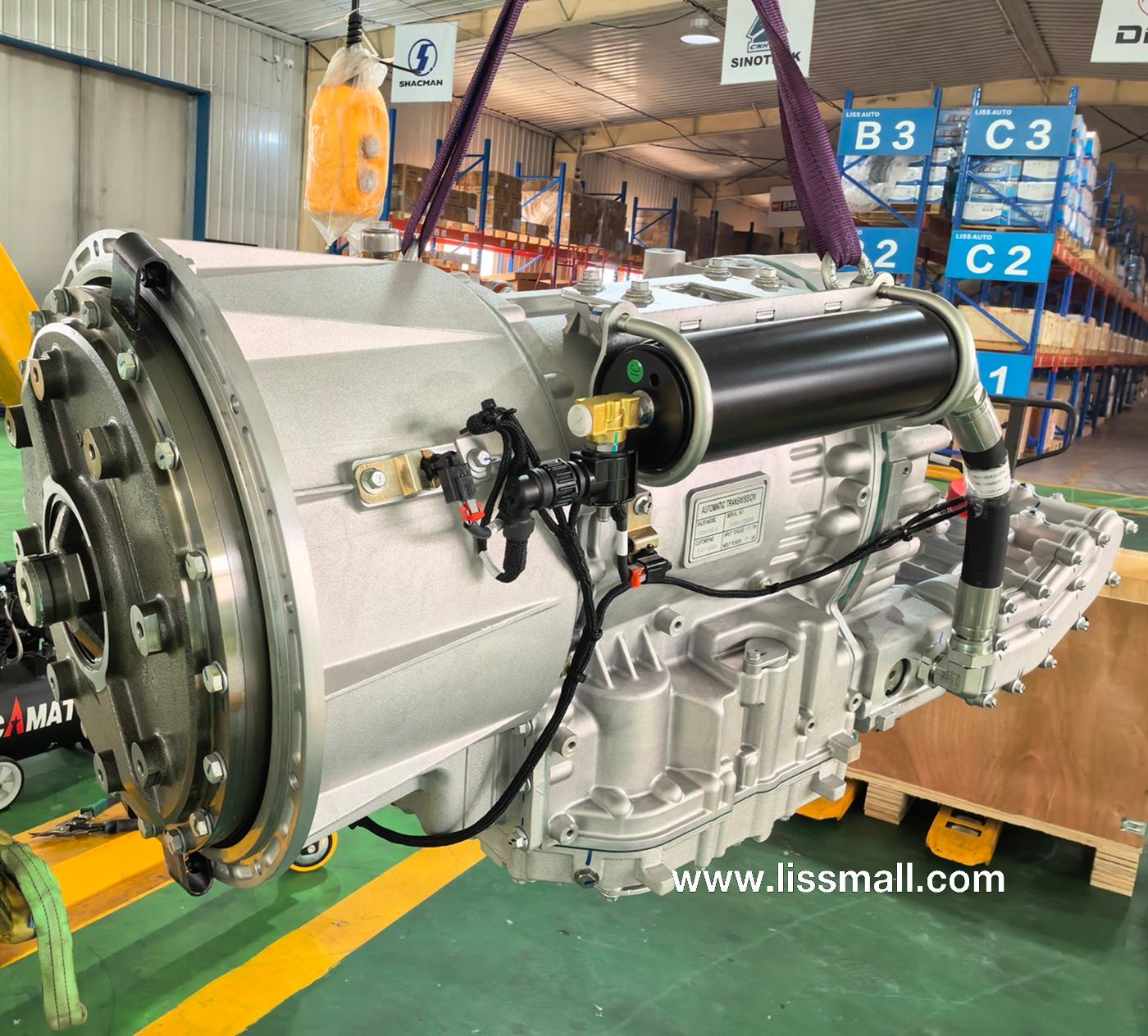

Fast Gearbox FC6A145RB S-011-GA604

FC6A145RB is a 6-speed high-torque hydraulic automatic transmission (AT) assembly manufactured by Shaanxi Fast Gear. Specifically developed for commercial vehicles such as city buses, heavy-duty trucks, and municipal sanitation vehicles, this model is widely utilized in commercial fleets both domestically and internationally.

🏷️ Nomenclature & Letter Meanings

• FC: Represents the Fast Gear hydraulic automatic transmission (AT) product line.

• 6A: Indicates an automatic transmission with 6 forward gears.

• 145: Represents a nominal maximum input torque of 1450 N·m (matching mainstream 240-330 hp engines, such as Weichai CNG/diesel engines).

• R: Represents the integrated hydraulic retarder, which provides auxiliary braking during frequent stops in city bus operations, extending brake pad life and improving safety.

• B: Represents a specific structural batch featuring technical upgrades or customization for specific OEMs (e.g., public transit systems).

🚌 Common Vehicle Applications & Matching Configurations

Due to variations in chassis structures and control wiring harnesses among different bus and heavy truck manufacturers, the FC6A145RB has derived multiple targeted assembly models:

• Yutong Bus / King Long Bus: Frequently matched with natural gas (CNG) city buses.

• Volgabus: Common specific configuration number is S-011-GA564, primarily matched with Weichai natural gas engines.

• MAZ (Minsk Automobile Plant): Specific configuration numbers such as S-011-GA470, widely exported to Eastern European public transit markets.

• LiAZ / Ural / Shacman: Serves as the core powertrain assembly in models like the LiAZ-529267.

🛠️ Key Performance Features

1. High-Efficiency Lock-up Structure: The hydraulic torque converter is equipped with a lock-up clutch and an integrated torsional damper, ensuring smooth launch and extremely high transmission efficiency at higher gears.

2. Highly Integrated TCU: The transmission control unit (TCU) is mounted directly on the housing, significantly simplifying the vehicle wiring harness and reducing the risk of communication failures caused by wiring wear.

3. Maintenance-Friendly Design: Features an external oil filter and external solenoid valves, allowing quick routine maintenance and solenoid replacement without removing the oil pan.

4. Power Take-Off (PTO): Some specialized vehicle versions support a unique rear PTO interface, saving chassis space.

🔄 Core Maintenance & Aftermarket Parts

For routine maintenance or overhauls, please note the following core consumables:

• Hydraulic Filter Kit: Genuine filter overhaul kit (usually including two external filters, oil filter O-rings, and paper gaskets), typically associated with part numbers DP82204440 or BS7010-052.

• Specialized Fully Synthetic Lubricant: Must use the Fast Super ATF (e.g., FL-04A specification) automatic transmission fluid designated by Fast Gear. Mixing with standard manual transmission gear oil is strictly prohibited.
